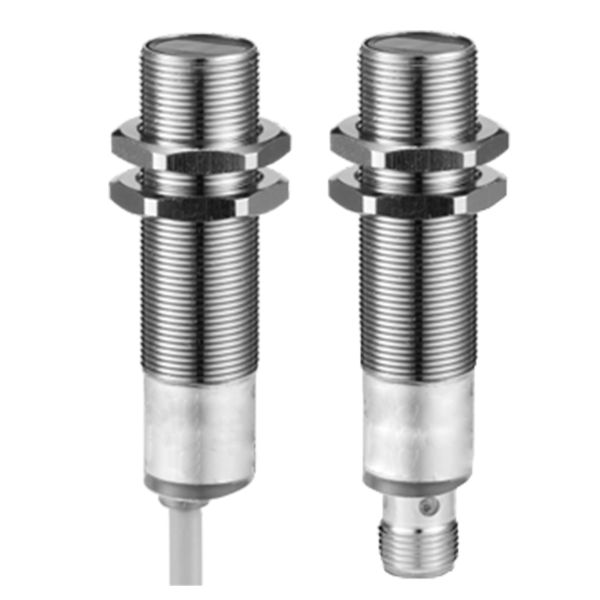

DC M18 Photoelectric Sensor Switch Small Size High Level Of Protection

Brand Name : SUPERISYS

Model Number : M18 DC photoelectric switch

Certification : ISO\FCC\ROSH

Place of Origin : CHINA

MOQ : one

Price : Large quantity price negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000 per day

Delivery Time : 1-2 work days

Stock : In Stock

Description : Dc photoelectric switch,M18 DC photoelectric switch,

working voltage : 10-30VDC

Allowable ripple voltage : ≤10%

error : ±10%Sn

hysteresis : 10%

light source : Infrared light (880nm)

maximum current output : 200mA

no-load current : 30mA or less

Conduction pressure drop : ≤2 .5V

sensitivity adjustment : Yes

response time : 1mS

short-circuit protection : Yes

Polarity reversal protection : Yes

operating temperature : -25~+55℃

ambient humidity : 35to85%RH

Background brightness : >10.000Lux

protection class : IP67

EMC protection : IEC60947-5-2,parts7.2.6.1.2.3 or RFI>10v/m(at 30-1000mhz),EFT>1KV, ESD>4KV(connection)

withstand voltage : IEC60947-5-2 or 500VDC power on for one minute

insulation resistance : >20mA(500VDC)

shake : IEC60947-5-2 or 10-55Hz,1.0mm amplitude, for 30 minutes in X,Y and Z directions

impact : IEC60947-5-2, the acceleration is 30g, the duration is 11ms

canning material : PBT or nickel plated copper

Standard test object : Antibeam: a circle with a diameter of 8㎜; Diffuse reflection: 20×20㎝ white paper
